Interior · 993-INT-SWITCH-BLANK-0001

Switch blank, dashboard

ConceptNon-critical trim

Blanking plug for an unequipped switch location in the dashboard. Trim part with flat faces and clips, measurable with calipers, retained as the pilot for the simple geometric category of phase 2.

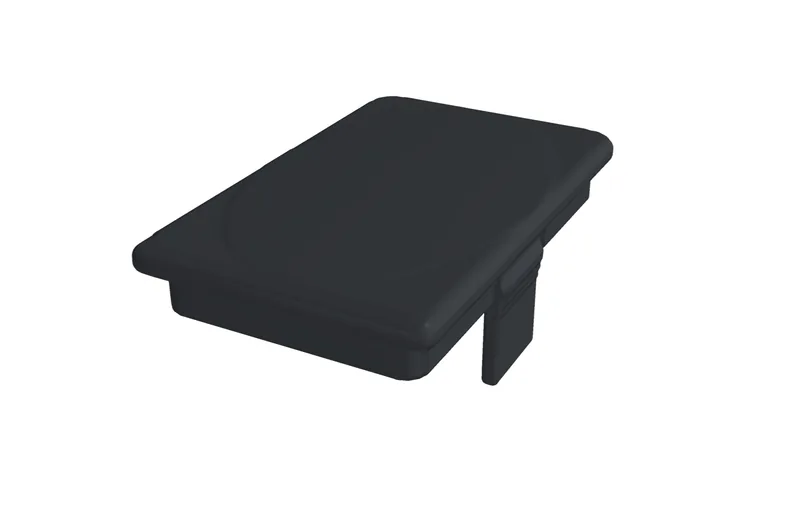

Concept CAD rendering for 993-int-switch-blank-0001.
Not a photograph, not a render of a manufactured part, not evidence of fit or function.

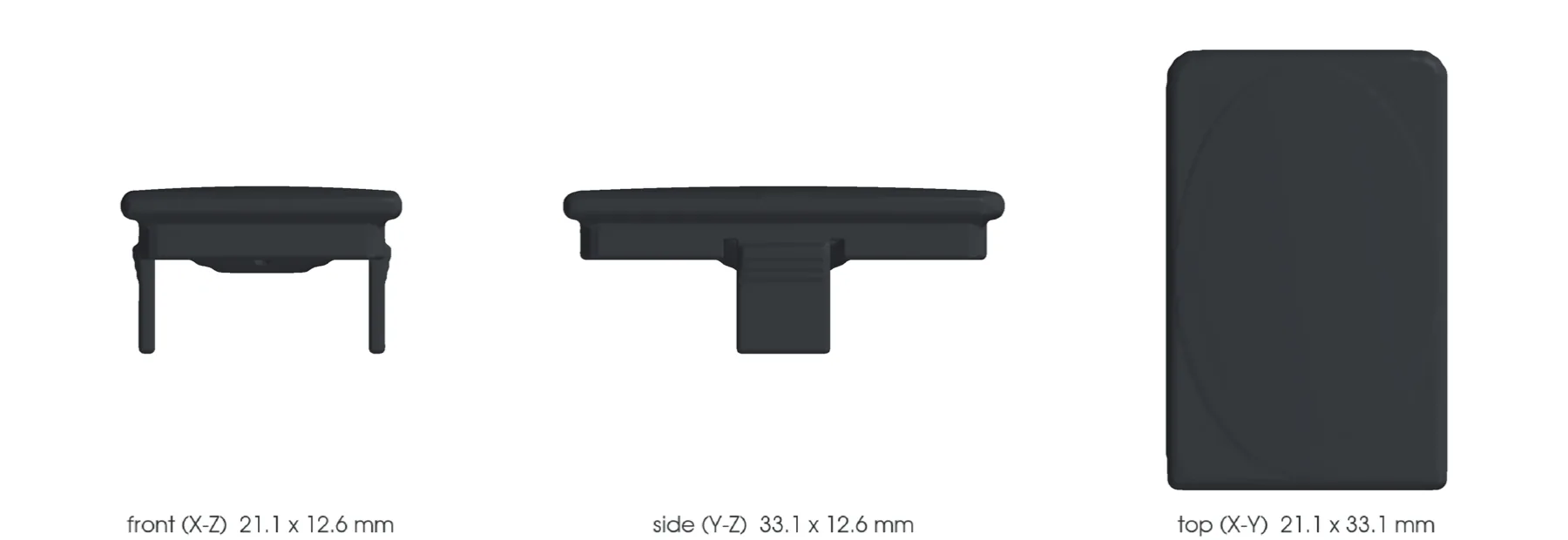

Concept CAD orthographic views for 993-int-switch-blank-0001.
Front, side and top views of the same concept CAD. Dimensions describe the model; fit on the car remains unverified.

The design

Vehicle
Porsche 993, 1994–1998
Variants
to confirm on vehicle
Porsche part numbers
Not recorded
Category
Interior trim
Geometry basis
Estimated
Preferred process
Filament printing
Other candidate processes
Resin printing (stereolithography), Multi Jet Fusion (nylon powder printing)
Material
to_be_determined_after_fit_test
Material standard
none

Known limits

  • No measurement made: all dimensions are absent, not estimated.
  • Porsche part number not transcribed.
  • Variant and model year to be confirmed on the measured vehicle.
  • Resistance to interior temperature and UV not evaluated.

Post-processing it would need

  • Deburring
  • Dry clip-fit test
