Engine · 993-ENG-MOUNTING-0001
Bionic Turbo engine mount cage and flexible envelope, PicoGK study
ConceptNot authorised until engineering review

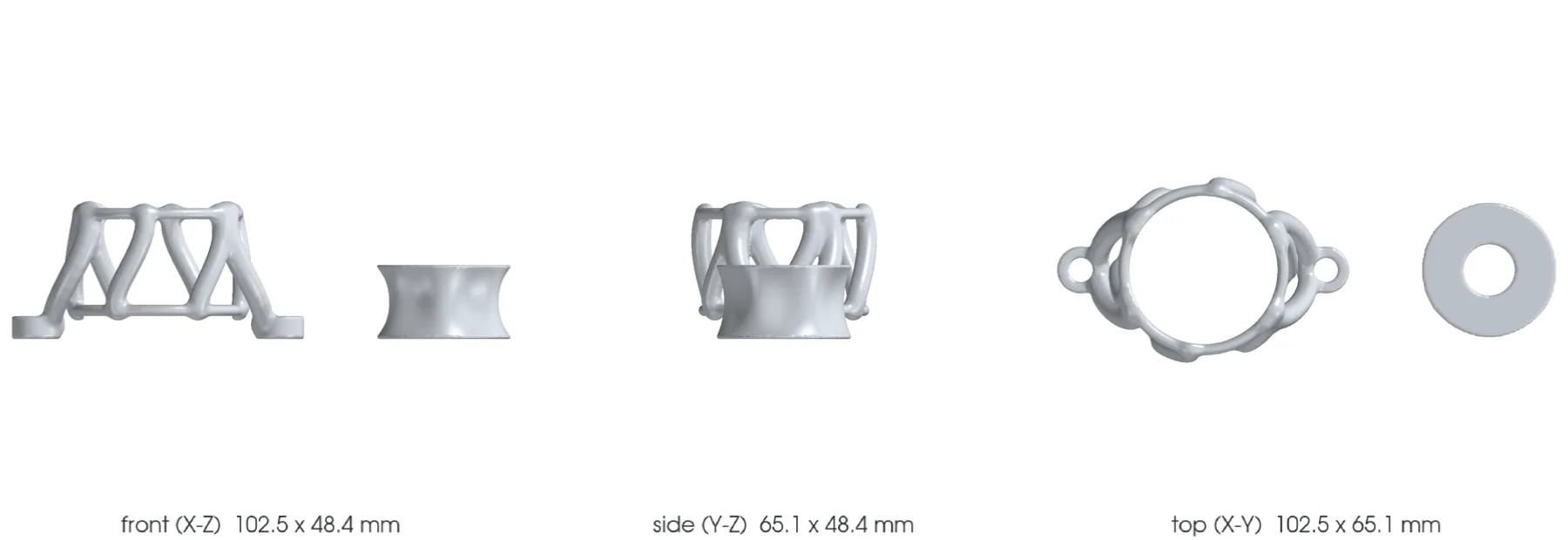

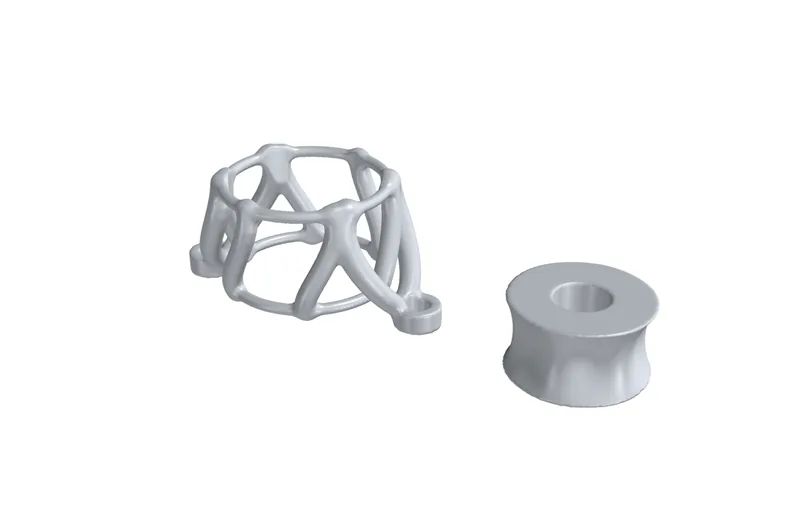

Two mounts at PET position 21, represented by open branching cages and separate six-lobed flexible envelopes. This shape study does not reconstruct the OEM internal mechanism or predict stiffness or damping. No optimisation under loads has been performed.
The design
- Vehicle
- Porsche 993, 1995–1998
- Variants
- 993 Turbo
- Porsche part numbers
- 993 375 049 05
- Category
- Powertrain mounting
- Geometry basis
- Estimated
- Preferred process
- Not chosen yet
- Other candidate processes
- Filament printing
Known limits
- F0 study: OEM geometry, fit, material, loads and fatigue are unverified.
- Dimensions, hole coordinates and exploded placement are study assumptions, not Porsche measurements.
- Native mass estimation is disabled; the real mass is unknown.
- No part from this study may support an engine.
- Bionic morphology only; no topology or mechanical optimisation under measured loads.
What a supplier would have to provide
- Professional review of the load path, interfaces and validation plan before functional manufacture.
Sources
- Porsche PET 993, Turbo group 109-00 · read
Identity and quantity from the reviewed PET requirements. 1995–1998 is the studied Turbo scope; exact model-year applicability remains to be confirmed. No OEM illustration or geometry is copied.
- LEAP 71 PicoGK · read
Pinned geometry kernel reused; no proprietary Noyron generator imported.
