Wheels · 993-WHL-CENTER-CAP-ALSI10MG-F0-0001

993 center cap, AlSi10Mg F0 concept without crest

ConceptFunctional part

Independent concept of a metal center cap with four integrated tabs to screen a small LPBF series. PorscheFanatics confirms the identity and the historical PET status; partworks publishes three dimensions and states that the original is plastic.

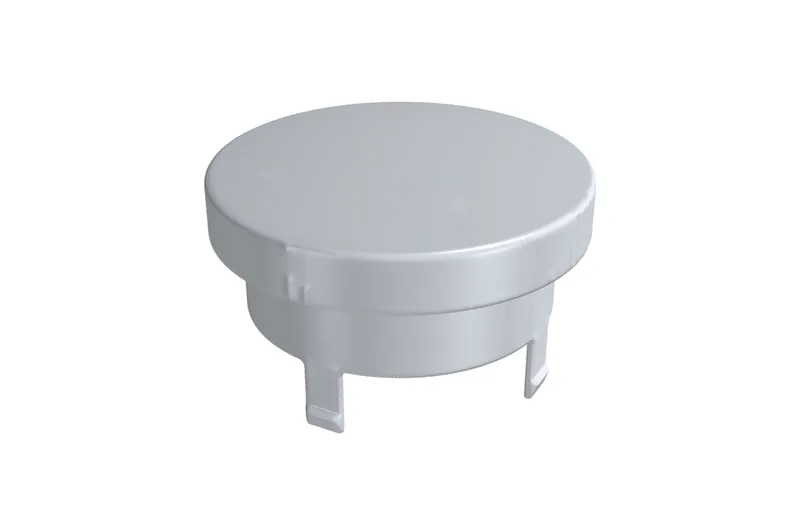

Concept CAD rendering for 993-whl-center-cap-alsi10mg-f0-0001.
Not a photograph, not a render of a manufactured part, not evidence of fit or function.

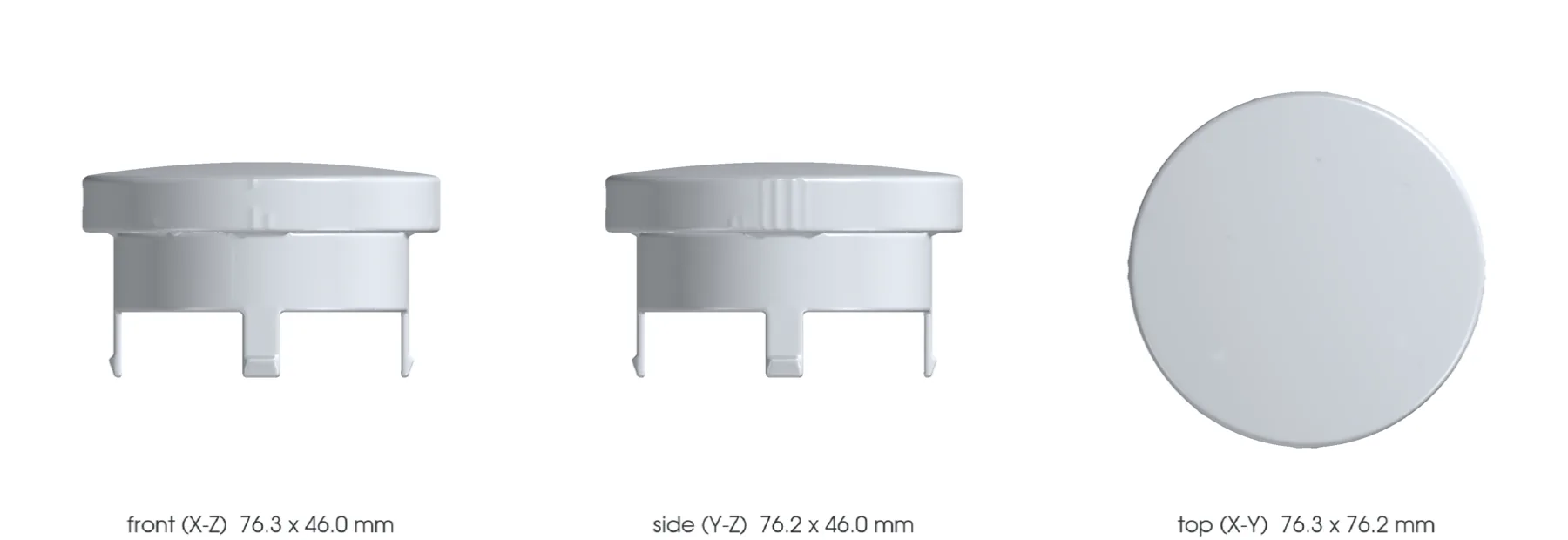

Concept CAD orthographic views for 993-whl-center-cap-alsi10mg-f0-0001.
Front, side and top views of the same concept CAD. Dimensions describe the model; fit on the car remains unverified.

The design

Vehicle
Porsche 993, 1994–1998
Variants
993 wheel fitment to confirm
Porsche part numbers
99336130307, 9933613030761M
Category
Wheel center cap
Geometry basis
Mixed
Preferred process
Not chosen yet
Other candidate processes
Laser powder-bed fusion (metal printing), Direct metal laser sintering (metal printing), Multi Jet Fusion (nylon powder printing), Selective laser sintering (nylon powder printing), CNC machining
Material
AlSi10Mg for screening; commercial original declared as plastic
Material standard
ASTM F3318 to be contracted if the metal route survives testing

Known limits

  • Only Ø76, Ø60, 46 mm height and plastic come from the commercial record; all interfaces are hypothetical.
  • Replacing plastic with AlSi10Mg changes mass, compliance, fatigue and corrosion; no equivalence is claimed.
  • The 0.4 mm, 0.30 coefficient, 250 km/h, 20 g and +120 K cases are synthetic.
  • The model includes no Porsche emblem, crest or design.
  • The STEP proves only a computable BREP and must not be installed on a wheel.

Post-processing it would need

  • Support removal with an open interior volume
  • Heat treatment qualified to preserve tab flexibility
  • Finishing of clip surfaces and edges
  • Anodizing after dimensional inspection
  • Front face left neutral with no Porsche marking

What a supplier would have to provide

  • Traceable powder, machine, parameters, orientation, lot and recycling
  • Bending coupon in the tab orientation
  • CT or radiographic inspection of the tab roots
  • Dimensional inspection of the ring and the four clips
  • Contracted roughness, radii, porosity and fatigue
  • Insertion, pull-out, rotation, impact and thermal cycling tests
