Interior · 993-INT-SEAT-RAIL-COVER-0001

Seat rail cover, outer side

ConceptNon-critical trim

Trim cover for the seat rail, existing in symmetrical left and right versions. Selected as the pilot for the symmetrical category of phase 2: a missing piece must be reconstructed from its counterpart and its surroundings.

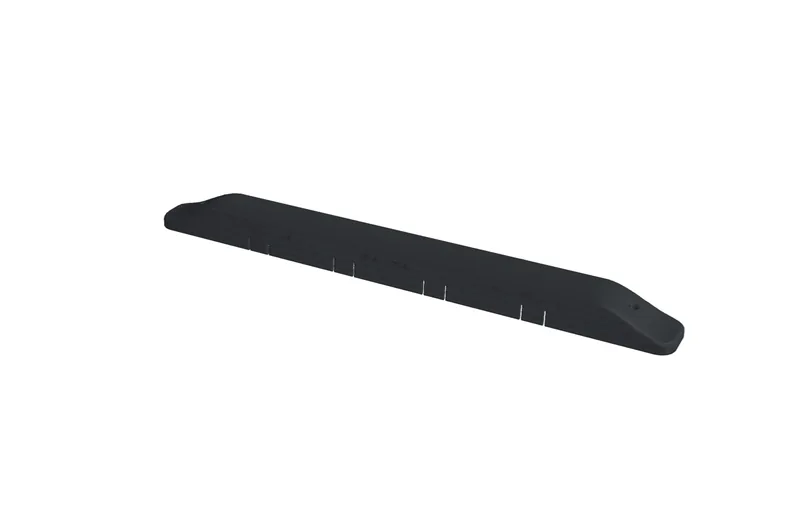

Concept CAD rendering for 993-int-seat-rail-cover-0001.
Not a photograph, not a render of a manufactured part, not evidence of fit or function.

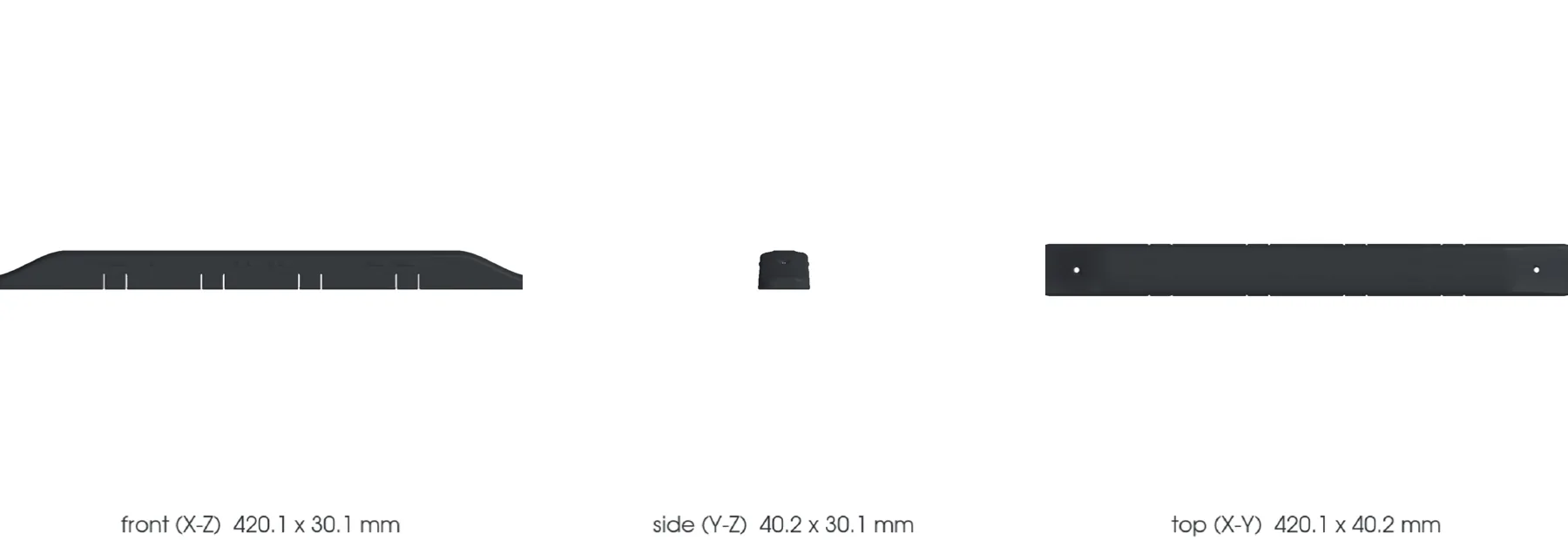

Concept CAD orthographic views for 993-int-seat-rail-cover-0001.
Front, side and top views of the same concept CAD. Dimensions describe the model; fit on the car remains unverified.

The design

Vehicle
Porsche 993, 1994–1998
Variants
to confirm on vehicle
Porsche part numbers
Not recorded
Category
Interior trim
Geometry basis
Estimated
Preferred process
Filament printing
Other candidate processes
Selective laser sintering (nylon powder printing), Multi Jet Fusion (nylon powder printing)
Material
to_be_determined_after_fit_test
Material standard
none

Known limits

  • Left-right symmetry is assumed and must be verified by measurement before any mirroring.
  • The seat and the rail differ by equipment: variant to be confirmed.
  • No measurement taken.
  • A part obtained by mirroring does not replace verification of the real interfaces.

Post-processing it would need

  • Deburring
  • Check of the clearance with the seat rail
