Interior · 993-INT-DOOR-PULL-0001

Interior door pull handle

ConceptFunctional part

Handle gripped by hand to close the door from the inside. An ergonomic shape that calipers alone cannot describe, retained as the pilot of the phase 2 organic category, to be acquired by photogrammetry.

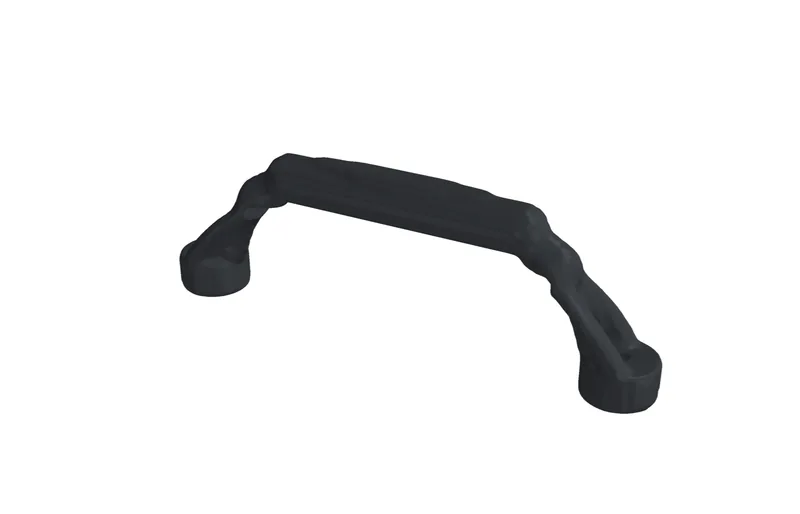

Concept CAD rendering for 993-int-door-pull-0001.
Not a photograph, not a render of a manufactured part, not evidence of fit or function.

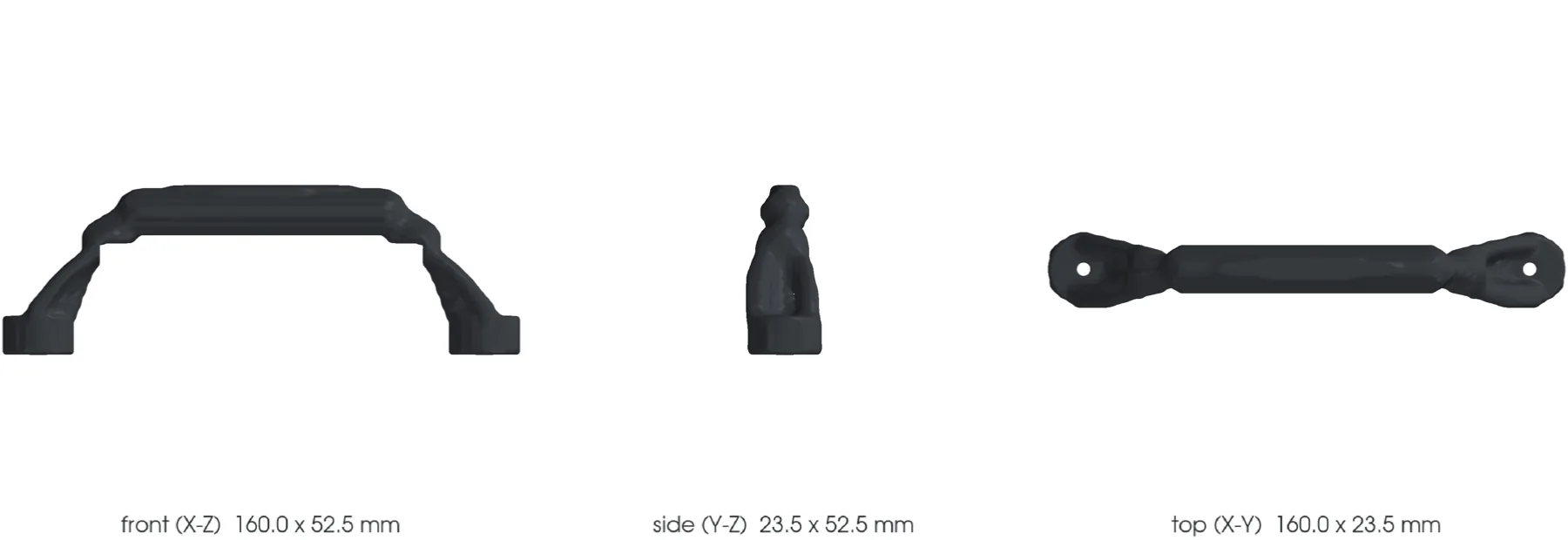

Concept CAD orthographic views for 993-int-door-pull-0001.
Front, side and top views of the same concept CAD. Dimensions describe the model; fit on the car remains unverified.

The design

Vehicle
Porsche 993, 1994–1998
Variants
to confirm on vehicle
Porsche part numbers
Not recorded
Category
Interior trim
Geometry basis
Estimated
Preferred process
Not chosen yet
Other candidate processes
Selective laser sintering (nylon powder printing), Multi Jet Fusion (nylon powder printing), Filament printing
Material
to_be_determined_after_load_test
Material standard
none

Known limits

  • Classed functional and not non_critical: the part takes a repeated manual load and its failure in the hand can cause injury.
  • No acquisition done; the photogrammetry will need to carry a scale reference.
  • Mounting interfaces and tightening torque unknown.
  • Fatigue behavior of a printed polymer not evaluated.

Post-processing it would need

  • Surface smoothing
  • Grip test
