Engine · 993-ENG-EXHAUST-VALVE-F1-0001

993 exhaust valves - F1 proxies

ConceptNot authorised until engineering review

Non-functional parametric proxies of the Carrera and Turbo exhaust valves to compare packaging and mass between generic steel, Inconel 751 and Ti-6Al-4V, without concluding on engine suitability.

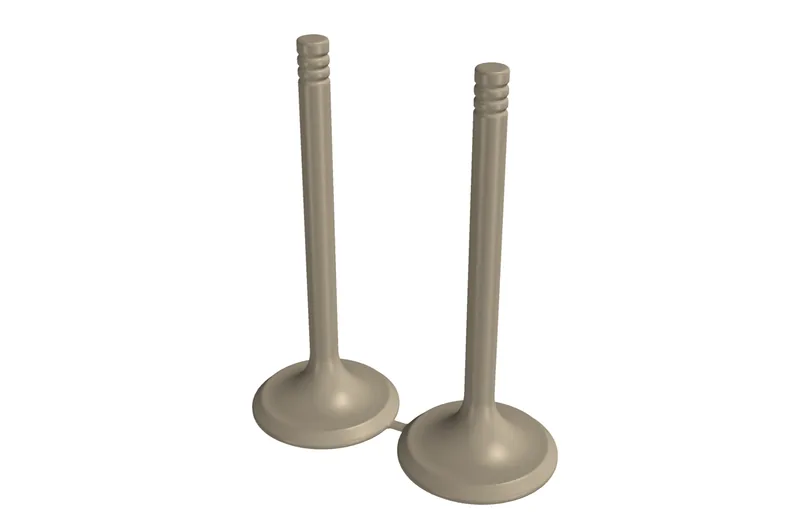

Concept CAD rendering for 993-eng-exhaust-valve-f1-0001.
Not a photograph, not a render of a manufactured part, not evidence of fit or function.

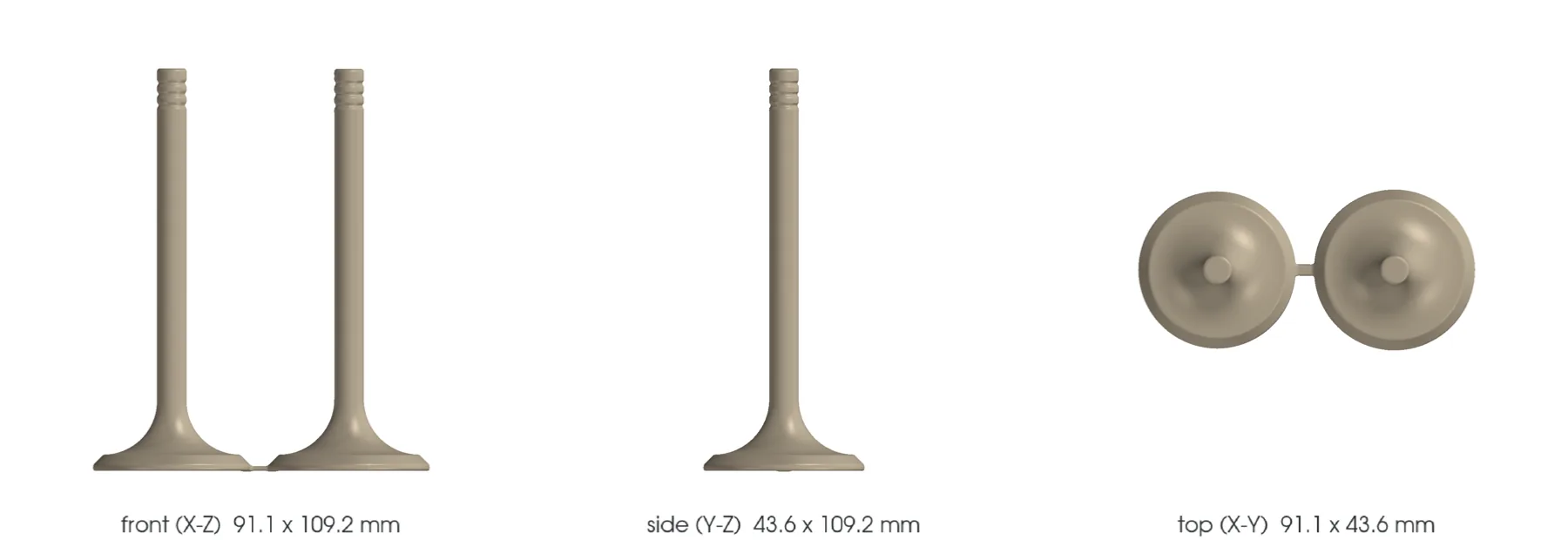

Concept CAD orthographic views for 993-eng-exhaust-valve-f1-0001.
Front, side and top views of the same concept CAD. Dimensions describe the model; fit on the car remains unverified.

The design

Vehicle
Porsche 993, 1994–1998
Variants
993 Carrera, 993 Turbo
Porsche part numbers
99310541901, 99310541984, 99310541952, 99310541953
Category
Engine valvetrain
Geometry basis
Estimated
Preferred process
CNC machining
Other candidate processes
Laser powder-bed fusion (metal printing), Direct metal laser sintering (metal printing)
Material
INCONEL 751 / UNS N07751 candidate
Material standard
manufacturer bulletin; application-specific qualification required

Known limits

  • The public dimensions do not define keeper grooves, seat angles and widths, margins, neck radii, coatings or tolerances.
  • Titanium is not selected for exhaust duty; it remains a comparison requiring measured temperatures and full thermal-fatigue validation.
  • The generated STLs are fit-check-only and must never be installed in an engine.

Post-processing it would need

  • Precipitation treatment per qualified route
  • Finish machining
  • Stem, seat, groove and tip finishing
  • Coating or hard-facing decision after tribology review

What a supplier would have to provide

  • Material heat and lot certificates
  • Process route
  • Dimensional and NDT reports
  • Hot fatigue and oxidation validation
  • Professional engineering release

Titanium route

Alloy
Ti-6Al-4V retained only as a deliberately challenged comparison for exhaust service
Heat treatment
not selected
Hot isostatic pressing
To be determined
  • CT
  • Metallography
  • Surface roughness
  • Dimensional inspection
  • Hot fatigue
  • Oxidation and wear testing
