Engine · 993-ENG-CHAIN-CASE-0001
993 timing chain case and its lids
ConceptNot authorised until engineering review
Investigation target: the chain case from factory plate 103-05, its three lids, its oil bridges and its tensioner. The record establishes identity and material reasoning; it is neither a replacement geometry nor a manufacturing authorization. Selected because the factory catalogue triage makes it a serious consolidation case — and because the titanium grid rejects it three times.

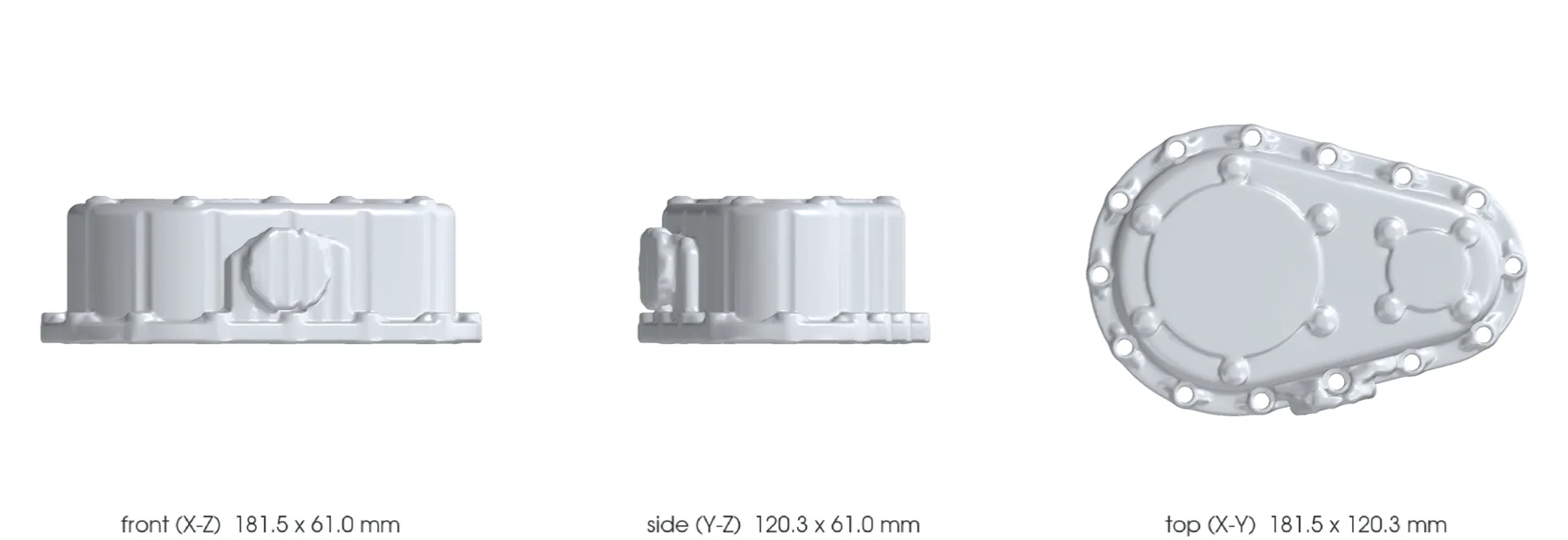

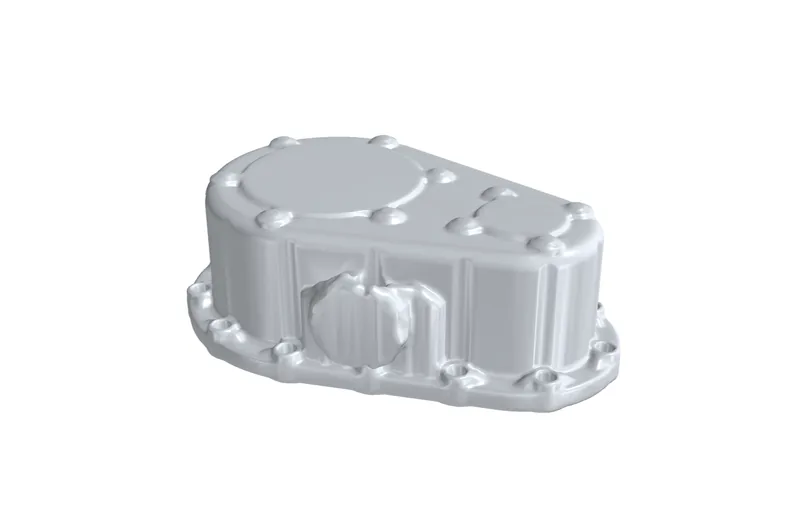

The design
- Vehicle
- Porsche 993, 1994–1998
- Variants
- 993 all models to confirm by variant
- Porsche part numbers
- 993 105 093 05, 964 105 094 04, 993 105 022 01, 964 105 107 01, 964 105 108 01, 993 107 087 51, 993 107 088 52, 993 107 088 00
- Category
- Engine timing chain case
- Geometry basis
- Estimated
- Preferred process
- Not chosen yet
- Other candidate processes
- casting, Laser powder-bed fusion (metal printing), CNC machining
- Material
- unidentified; the original is a casting whose grade is not published
Known limits
- No dimension, no material and no interface is established: the catalogue identifies, it does not dimension.
- The grade of the original case is not published; "aluminum" is an inference from consistency with the engine case, not an identification.
- The case carries the timing drive and pressurized oil: its failure can cost the engine, and the oil has hot neighbors on this plate, which includes a heat protection plate.
- Titanium is ruled out by three independent contraindications from the grid: differential expansion against the aluminum case, threads reworked at every removal, galvanic couple with aluminum.
- The real additive gain — consolidating the case, the bridges and the oil galleries — is not investigated and will not be without measuring a physical example.
Sources
- 993 factory catalogue, plate 103-05 Chain case · read
Identifies two `chain case`, three `lid`, two `chain adjuster`, one `bearing`, one `heat protection plate` and three `bridge`, two of which are also described as `oil gallery`. Establishes no dimension, no material and no interface.
